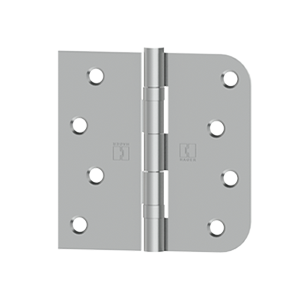

BB1543

Must be ordered in increments of two.

Contact Hager for Price

Specs

Box Quantity

2 each

Case Quantity

50 each

Certifications

ANSI A5134 (Stainless steel)

Fastener Size - Wood

3/4" x 9" FH

Features

Assembled right hand. Square by 5/8" (16 mm) radius. Removable pin.

Finishes

10R, US3, US32D

Gauge

.085"

Knuckles

Material

Brass with brass pin, Stainless steel with stainless steel pin

Notes

Hager residential hinges are provided without lubrication. We recommend lubricating the hinges after installation.
All residential hinges conform to the "Light Weight" requirements of ANSI A156.1.

Packaging

2 pack with fasteners

Pin Diameter

.234"

Product Description

5-Knuckle, Square Corner by 5/8" Radius, Ball Bearing with Fasteners

Size

4" X 4"

	Name	Download	File type
	Full Mortise Res - 4in x 4in Template - T399-Rev03.pdf	88 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Res_Size_Opt_3.pdf	108 KB	.pdf
